Installation guide

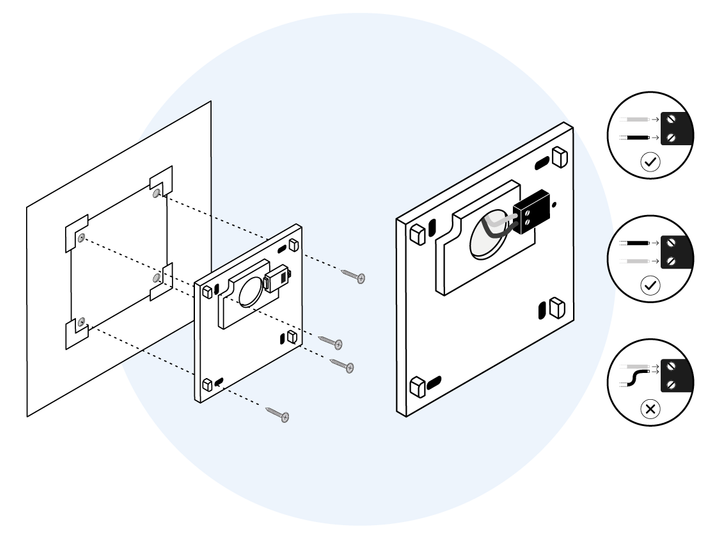

Installing the wall bracket (3/4)
Using a screwdriver, secure the bracket by inserting the 4 screws provided into the wall plugs you just fitted. Next, screw the boiler control wires into the electrical connectors on the bracket and isolate the remaining wires, if needed.
